Pneumatic Valve

PNEUMATIC VALVE FT803

Features

  1. MINOR ADJUSTMENT, MINOR-AMOUNT APPLICATION

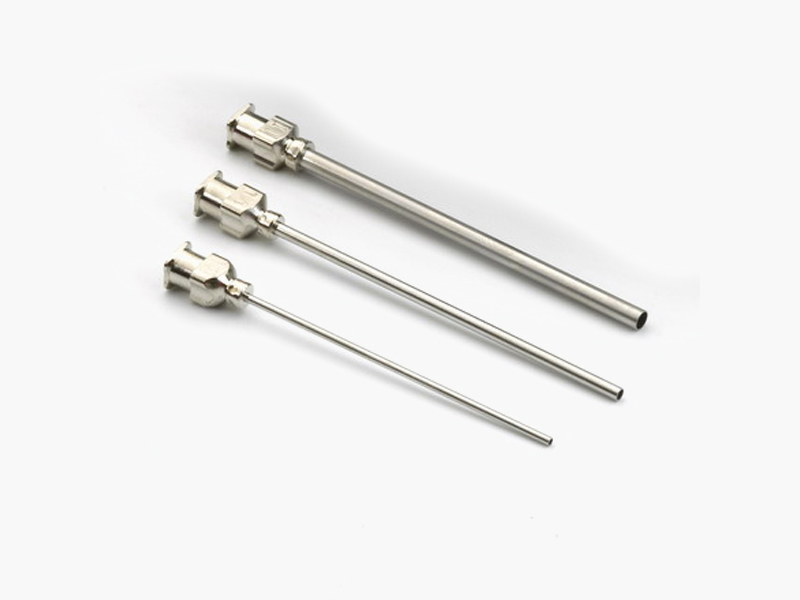

  2. COULD BE EQUIPPED WITH DIFFERENT DIAMETER OF NEEDLE.
View catalog
Need help choosing? Contact YU LIEN
SpecificationsImages & drawingsRelated products

Technical data

Specifications

Based on the previous website's product data
ItemSpecification
FEATURESMINOR ADJUSTMENT, MINOR-AMOUNT APPLICATION
WORKING PRESSUREMAX 180 bar
APPLICATIONLUBRICANT , CHEMICAL LIQUID, AND NON-DRYING ADHESIVE
AIR PRESSURE REQUIRMENT4~6 bar
WEIGHT0.52kg
SIZE30x30x175mm

Details

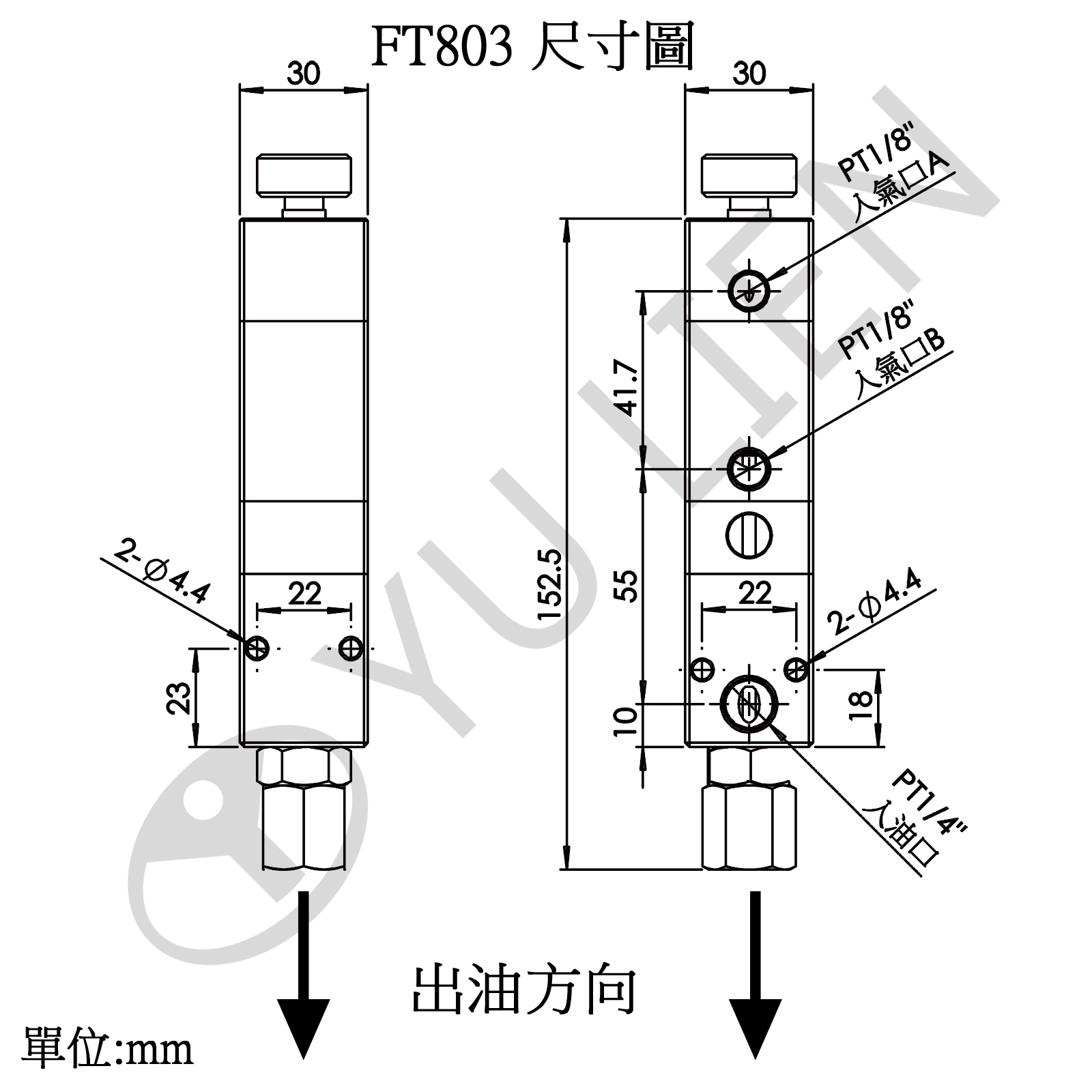

Images & drawings

Click an image to enlarge
