SERVO DISPENSER HA0201A

APPLICABLE FOR PRECISE METERING OUTPUT, INDUSTRY 4.0 TOOL, HMI OPERATION AND PERFECT AUTOMATION APPLICATION.

Features

DRIVEN BY SERVO MOTOR, OUTPUT QUANTITY AND SPEED COULD BE FREELY CONTROLLED.

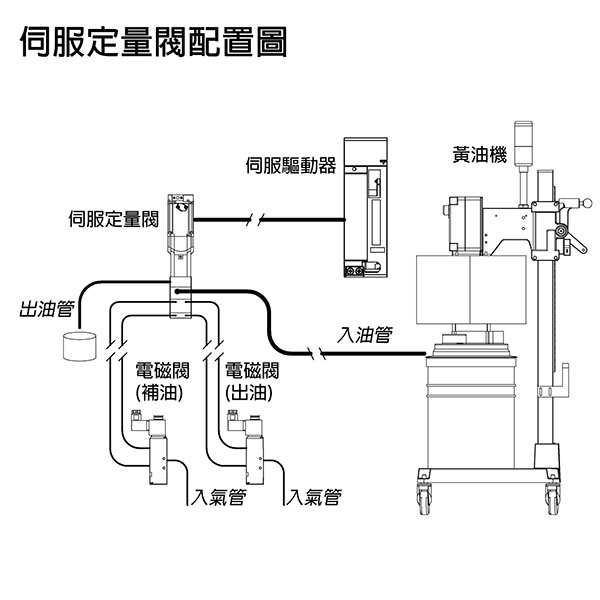

ABANDON THE EXTERNAL SYRINGE, WHICH SAVING FILLING TIME THROUGH COOPERATE WITH PUMP SUPPLYING LUBRICANT.

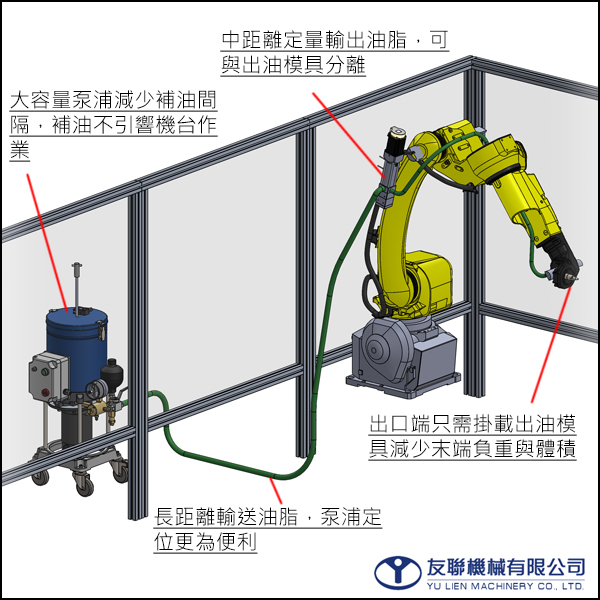

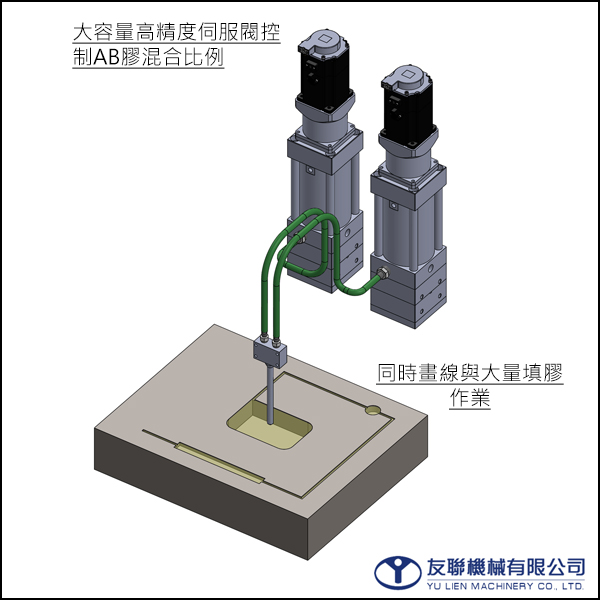

In action

Technical data

Based on the previous website's product data

Item	Specification
AMOUNT PER OUTPUT	0.1cc~2cc
WATT	100W 220V
ACCURACY	±2%
APPLICABLE LUBRICANT	NLGI #00~#3GREASE
APPLICABLE TEMPERATURE	-10°C ~ +50°C
APPLICABLE FUILD PRESSURE	LIQUID:6~15bar SEMI-SOLID(GREASE):15~60 bar
OUTPUT PRESSURE(HALF LOAD)	22bar
AIR PRESSURE REQUIRMENT	5~8 bar
WEIGHT	1.4kg

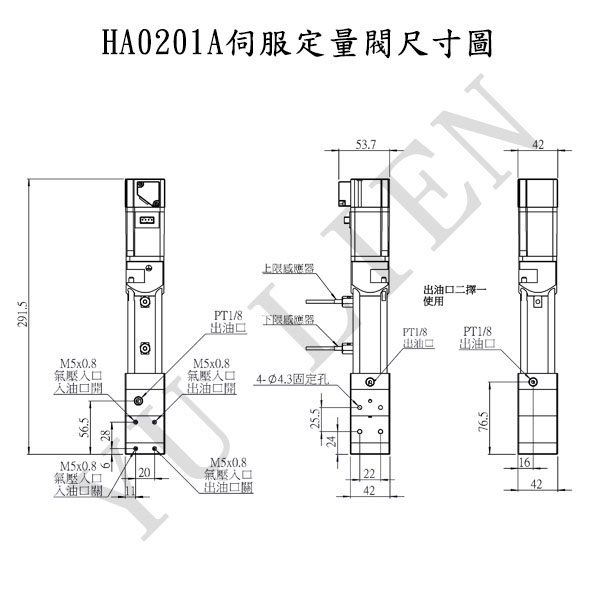

SIZE(mm)	290x42x42mm
