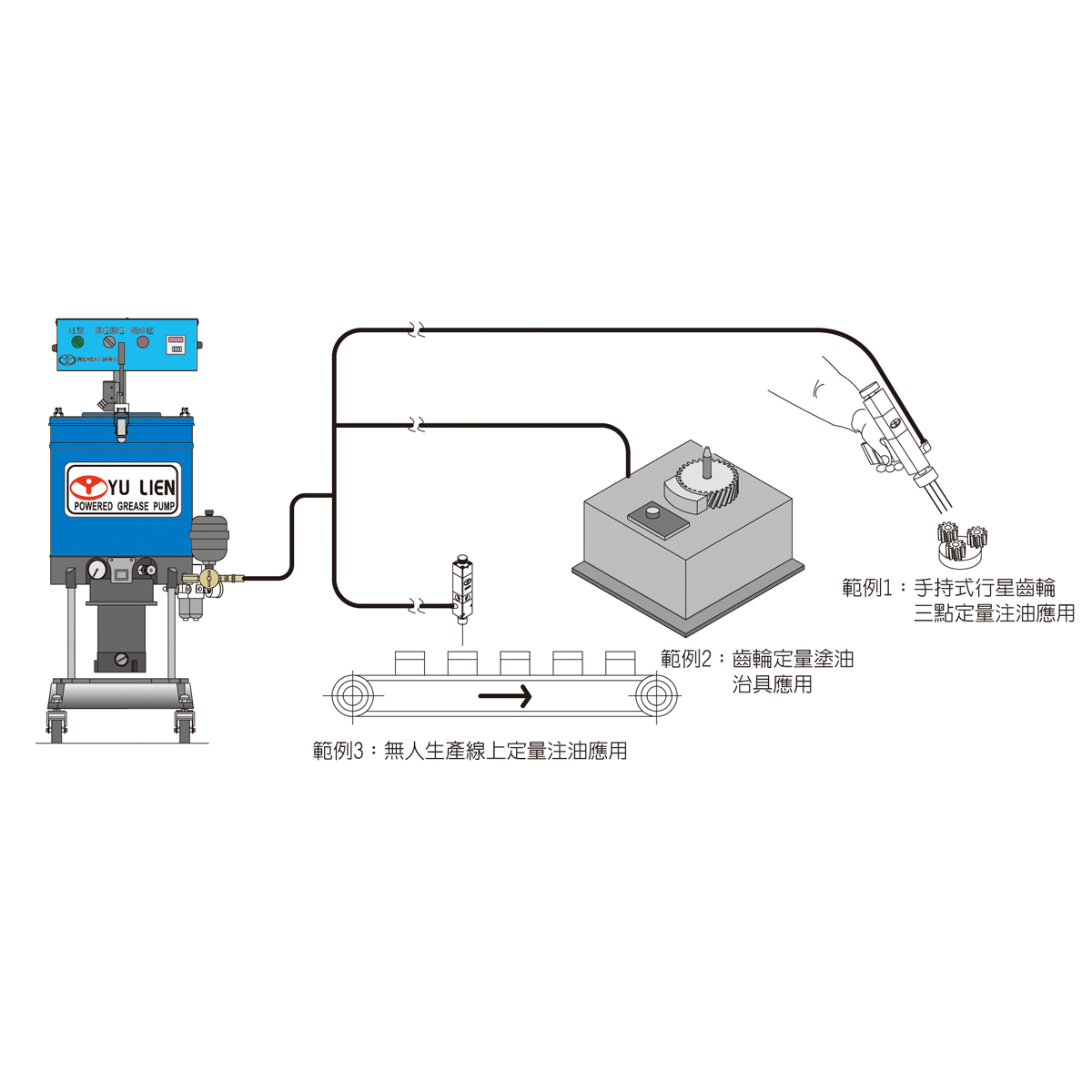

ELECTRIC LUBRICANT PUMP F103-A
Features
- THE GREASE CAN BE SUPPLIED EVEN DURING OPERATION, SAVING THE TIME FOR STOPPING PRODUCTION LINE TO REPLACE GREASE BARREL AND ENHANCING WORKING EFFICIENCY.
- GREASE LOWER LIMIT ALARM AUTOMATICALLY REPORTS THE TIMING FOR RESUPPLYING GREASE, ABSOLUTELY PREVENTING INSUFFICIENT GREASE OUTPUT.
- THE GREASE IS ISOLATED FROM AIR BY A GREASE-MOVING PLATE WHICH GUARANTEES THERE IS NO AIR INSIDE THE OUTPUT OF GREASE.
Technical data
Specifications
| Item | Specification |
|---|---|
| POWER | AC110V-2P, AC220V-2P,<br>AC220V-3P, AC380V-3P |
| AIR PRESSURE REQUIREMENT | 4~6 bar |
| BARREL CAPACITY | 20L(50L FOR LARGE SIZE) |
| APPLICABLE LUBRICANT | NLGI #00~#3 GREASE |
| OUTPUT PRESSURE | 0 ~196 bar |
| WEIGHT | 53kg |
| SIZE | 370x370x1100mm |
Details
