ELECTRIC LUBRICANT PUMP MM200-2A
Features
- SUITABLE FOR STANDARD 50 GALLON GREASE BARREL. OPERATION COULD START AFTER PLACING GREASE TANK.
- GREASE LOWER LIMIT ALARM AUTOMATICALLY REPORTS THE TIMING FOR CHANGING GREASE BARREL, ABSOLUATELY PREVENTING INSUFFICIENT GREASE OUTPUT.
- EQUIPPED WITH VARIABLE-FREQUENCY DRIVE ENHANCES FOR OUTPUT ADJUSTMENT AND ENERGY SAVING.
- EQUIPPED WITH TIMER ENHANCES RELIABLE LUBRICATING REQUIREMENT.

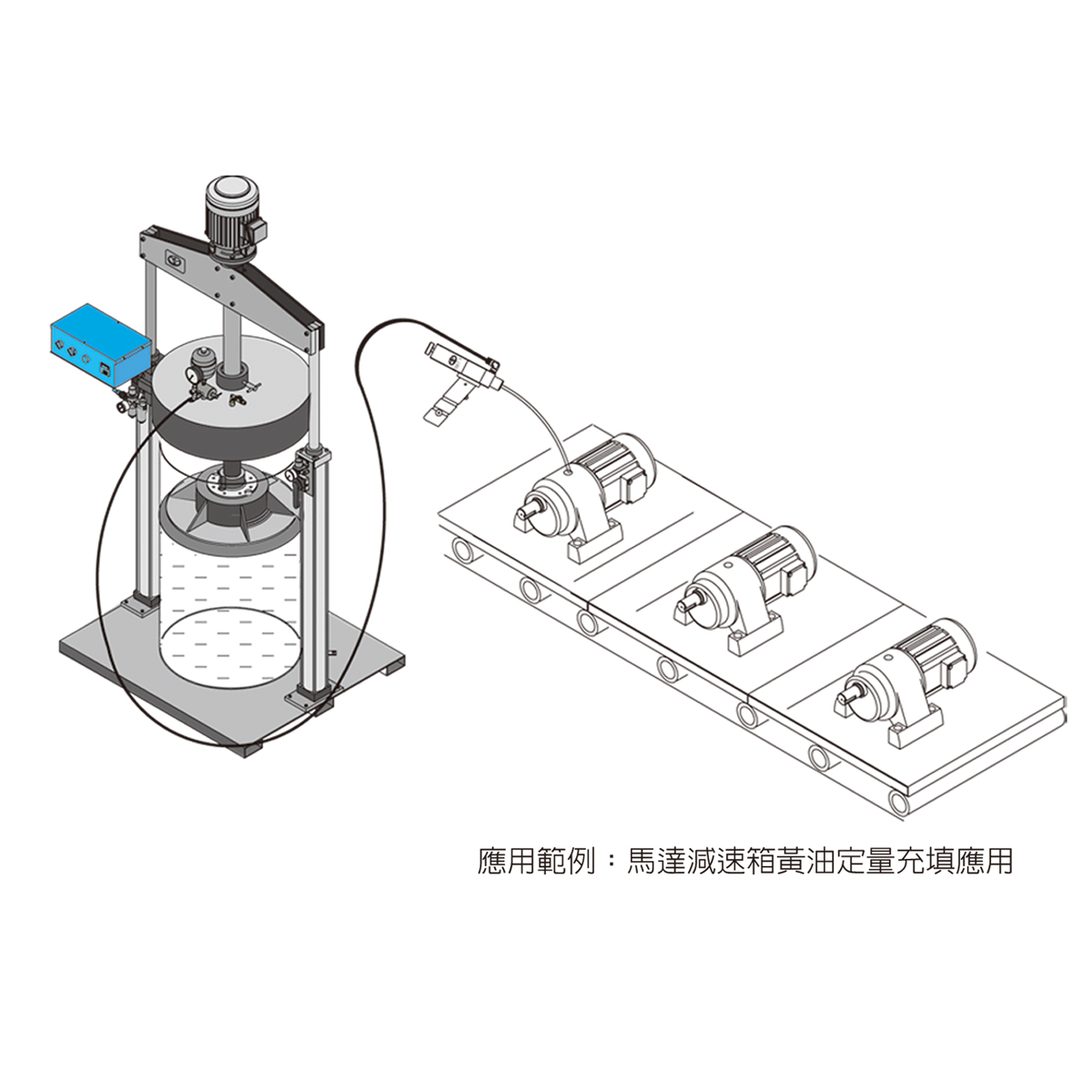

INDUSTRIAL FLOW-LINES, MAJOR AMOUNT DISPENSATION, AND AUTOMATIC AND FIXED-AMOUNT FILLING OF GREASE
Technical data
Specifications
| Item | Specification |
|---|---|
| DELIVERY RATE | 1.6 L/Min~3.2 L/Min |
| POWER | 220V-3P, 380V-3P, 440V-3P |
| VARIABLE FREQUENCY | 30HZ~60HZ |
| AIR PRESSURE REQUIREMENT | 4~6 bar |
| BARREL CAPACITY | 50 GALLON BARREL ONLY |
| AMOUNT PER OUTPUT | 2cc~500cc |
| ACCURACY | ±5% |
| APPLICABLE LUBRICANT | NLGI #1~#3 GREASE |
| OUTPUT PRESSURE | 29 ~196 bar |
| WEIGHT | 259kg |
| SIZE | 800x920x2800(Max)mm |
| APPLICABLE TEMPERATURE | -2ºc~+50ºc |
